7H15 8PK Truck AC Compressor For JAC VSDA 24V WXTK147
Parameter :
| Model Number | WXTK147 |
| Type | AC Compressor & clutch |
| Car Model | For JAC VSDA 24V |
| Model | 7H15 8PK |
The working principle of a car air conditioning compressor involves the compression of refrigerant to increase its temperature and pressure. This process is essential for the proper functioning of the air conditioning system in a vehicle.
The compressor is driven by the engine through a belt and pulley system. When the air conditioning is turned on, the compressor is engaged, and refrigerant gas is drawn into the compressor from the evaporator.
Inside the compressor, the gas is compressed by a piston or rotating vane mechanism. As the gas is compressed, its pressure and temperature increase significantly. This high-pressure and high-temperature gas is then discharged from the compressor and sent to the condenser.
The condenser is located in front of the vehicle and is responsible for cooling down the high-pressure gas. It consists of a network of tubes with fins that allow heat from the refrigerant to dissipate into the surrounding air. As the gas cools down, it condenses into a high-pressure liquid.
The high-pressure liquid refrigerant then flows into the expansion valve or the orifice tube. This component regulates the flow of refrigerant into the evaporator. By restricting the flow, the pressure of the refrigerant is reduced, causing it to expand rapidly. This expansion results in a drop in temperature, making the refrigerant cold.
At this point, the cold refrigerant enters the evaporator, which is usually located inside the dashboard of the vehicle. The evaporator acts as a heat exchanger, allowing air to pass through its fins. As the air comes in contact with the cold refrigerant, heat is transferred from the air to the refrigerant, cooling down the air.
The refrigerant, now heated, turns back into a gas and goes through the compressor again to repeat the cycle. This continuous circulation of refrigerant and heat exchange between the refrigerant, air, and vehicle components ensures the cooling effect of the car air conditioning system.
Overall, the compressor plays a vital role in the car air conditioning system by compressing the refrigerant and enabling the cooling process to take place effectively.
The role of compressor
The compressor is an essential component of the air conditioning system in a vehicle. Its primary function is to circulate and compress the refrigerant gas, which is responsible for cooling and dehumidifying the air in the cabin.
The process starts with the compressor drawing in low-pressure refrigerant gas from the evaporator and then compressing it into a high-pressure, high-temperature gas. This compressed gas is then sent to the condenser, where it releases heat and transforms into a high-pressure liquid. After leaving the condenser, the pressurized liquid refrigerant flows through the receiver drier or accumulator, which removes any moisture or debris from the refrigerant.
From there, the refrigerant passes through the expansion valve or orifice tube, which regulates the flow of the refrigerant into the evaporator. Inside the evaporator, the high-pressure liquid refrigerant rapidly expands and evaporates, absorbing heat from the air passing over the evaporator's fins. This cools the air and reduces its humidity. The cooled air is then blown into the cabin through the vents, providing a comfortable and refreshing environment for passengers.
Overall, the compressor plays a crucial role in the refrigeration cycle of the air conditioning system, ensuring that the refrigerant is properly circulated, pressurized, and transformed to achieve effective cooling inside the vehicle.
Product Tags:
|
|

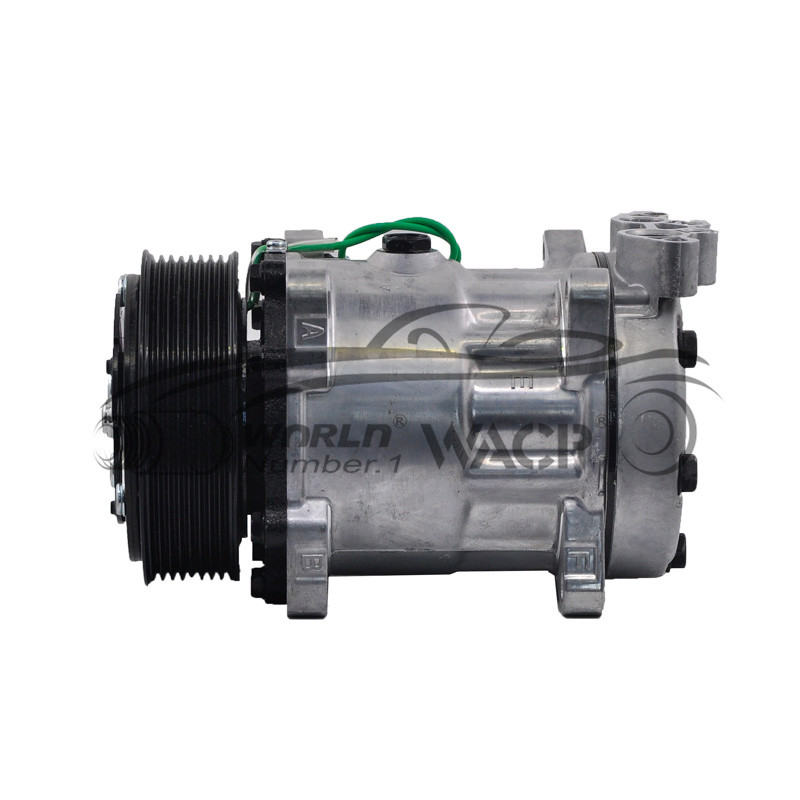

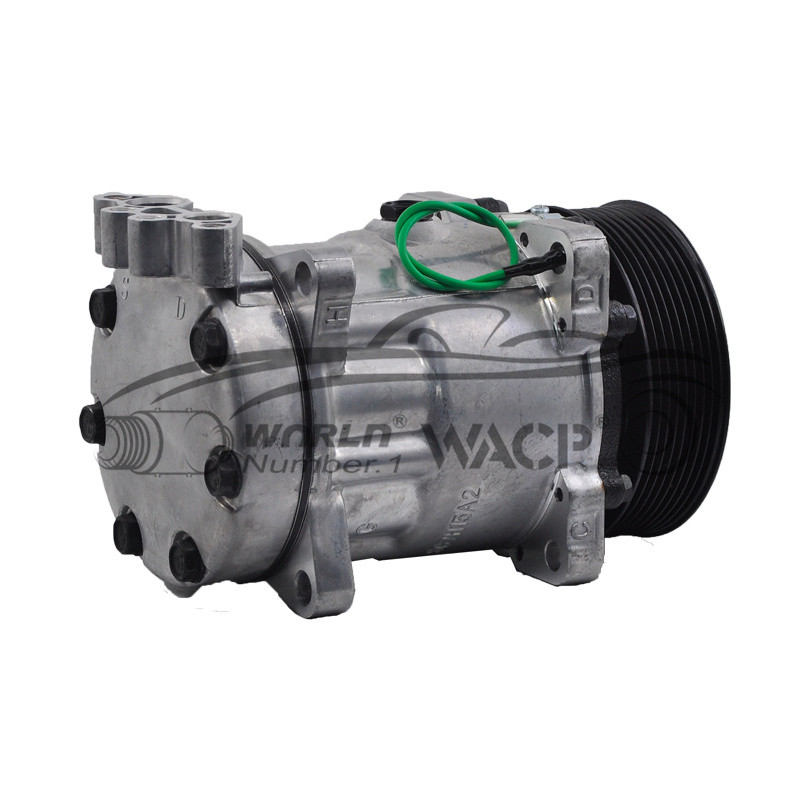

7H15 8PK Truck AC Compressor For JAC VSDA 24V WXTK147 Images
|
